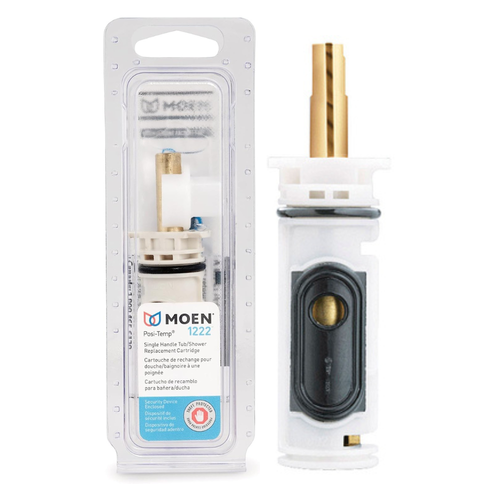

Moen 1222 Single-Handle Posi-Temp Shower Valve Replacement Cartridge

How to Confirm You Need the 1222 Cartridge

You need the 1222 cartridge if:

• Your shower valve is a Moen Posi-Temp single-handle valve
• Your handle only rotates to turn on water and adjust temperature — it does not pull out for separate volume control
• Your existing cartridge is labeled 1222 or 1222B
• Your shower is leaking, dripping, failing to maintain water temperature, or hard to operate

1222 vs 1222B — What Is the Difference?

There is no functional difference between the 1222 and 1222B. They are identical cartridges made from the same components on the same production line. The only difference is packaging — the "B" in 1222B stands for Bulk, indicating it is sold in contractor bulk packs rather than individual consumer retail packaging. Either version is a direct, interchangeable replacement for the other.

1222 vs 1225 — Critical Difference

Product Description

The Moen 1222 is the genuine OEM replacement cartridge for Moen Posi-Temp single-handle shower and tub/shower valves. The Posi-Temp system is Moen's pressure-balancing valve technology, designed to maintain a consistent water temperature even when other faucets or appliances are used simultaneously — preventing sudden changes from cold to scalding hot water mid-shower.

Over time, the cartridge inside a Posi-Temp valve can wear out due to regular use, mineral buildup, or degradation of internal seals. When this happens, common symptoms include a dripping shower, a handle that is stiff or hard to turn, water that won't shut off completely, or inconsistent water temperature. Replacing the 1222 cartridge is a straightforward DIY repair that restores full functionality to the valve — eliminating the need to replace the entire valve body or trim.

The 1222 features durable brass and plastic construction, built-in hot/cold indicators on the cartridge body, and Moen's pre-set maximum temperature limit feature, which allows you to set the hottest allowable water temperature before installation.

Key Features

• Posi-Temp Pressure Balancing: Maintains consistent water temperature by automatically adjusting flow if pressure drops on the hot or cold side — preventing scalding or cold shock mid-shower
• Pre-Set Maximum Temperature Limit: Allows you to set the maximum hot water temperature before installation for added safety
• Brass and Plastic Construction: Durable materials designed for long-lasting performance in high-use shower environments
• Hot/Cold Indicator: "HC" markings on the cartridge body for correct orientation during installation
• Genuine Moen OEM Part: Guaranteed fit for all Moen Posi-Temp single-handle shower and tub/shower valves
• Cost-Effective Repair: Replaces just the cartridge rather than the entire valve body or trim — restoring full valve function at a fraction of the cost
• Backed by Moen's Warranty: Covered by Moen's One-Year Limited Warranty
• Dimensions: 1.25" W x 2.13" D x 6.5" H

Symptoms That Indicate a Worn 1222 Cartridge

• Shower drips or leaks continuously even when the handle is fully turned off
• Handle is stiff, hard to rotate, or requires excessive force to operate
• Water temperature is inconsistent or fluctuates unexpectedly during use
• Handle spins loosely without controlling water flow or temperature effectively
• Water will not shut off completely after turning the handle to the off position
• Visible mineral buildup or corrosion on the cartridge body

Compatible Moen Posi-Temp Valve & Faucet Models

The 1222 cartridge fits all Moen Posi-Temp single-handle shower and tub/shower valve bodies. Compatible with a wide range of Moen faucet trim collections that are designed for use with the Posi-Temp valve.

Select Compatible Moen Posi-Temp Faucet Models

Compatibility Tip: The 1222 cartridge fits all Moen Posi-Temp valve bodies — this includes virtually all Moen single-handle shower faucets where the handle rotates only (no pull-out volume control). If you are unsure whether your valve is Posi-Temp, look for a circular valve body behind the wall trim. Posi-Temp valves are one of the most common Moen valve types installed since the 1990s.

Alternate Compatible Part Numbers

1222, 1222B, 10878, 10879, 10880

Installation Instructions

1. Remove the Handle: Pry off the decorative cap on the handle to expose the handle screw. Remove the screw (Phillips or flat head) and pull the handle straight off the valve stem
2. Remove the Trim: Remove the escutcheon plate (the decorative cover around the valve) by unscrewing any visible screws or sliding it off
3. Expose the Cartridge: Remove the stop tube (the plastic sleeve surrounding the cartridge) by pulling it straight off. Remove the cartridge retainer clip using needle-nose pliers — pull it straight out from the top of the valve
4. Remove Old Cartridge: Using needle-nose pliers, grasp the cartridge stem and pull it straight out of the valve body. Do not twist — pull straight out. If the cartridge is difficult to remove, a cartridge puller tool (available at hardware stores) can help
5. Set Maximum Temperature (Optional): Before installing the new cartridge, you can pre-set the maximum hot water temperature limit by rotating the cartridge body to your desired position. Refer to the instruction sheet included with the cartridge
6. Install New Cartridge: Orient the new cartridge with the "HC" label and ears facing up. Insert it straight into the valve body, pressing firmly until it is fully seated. The cartridge ears must align with the slots in the valve body
7. Reinstall Retainer Clip: Slide the retaining clip back into its groove at the top of the valve body to lock the cartridge in place
8. Reassemble: Replace the stop tube, escutcheon plate, handle, and decorative cap in reverse order
9. Restore Water Supply: Slowly turn the water supply back on and test the valve for leaks and correct operation

Frequently Asked Questions

What is the difference between the 1222 and 1222B?

There is no functional difference. The 1222 and 1222B are identical cartridges made from the same components. The "B" simply indicates bulk packaging sold to contractors. Either version is a direct replacement for the other — if your existing cartridge is labeled 1222 or 1222B, either part number will work as a replacement.

How do I know if I need the 1222 or the 1225 cartridge?

The simplest way is to test your current handle operation. If your handle only rotates to control water on/off and temperature, you need the 1222. If your handle must be pulled outward to start the flow and then rotated for temperature, you need the 1225. The two cartridges are not interchangeable and fit different valve bodies.

Can I replace the 1222 cartridge myself or do I need a plumber?

Replacing a Moen 1222 cartridge is one of the more straightforward DIY plumbing repairs. The main requirements are turning off the water supply, having needle-nose pliers, and following the installation steps carefully. A cartridge puller tool can help if the old cartridge is stuck. If you are uncomfortable working with plumbing or if the valve body appears damaged, a licensed plumber is recommended.

My shower is still leaking after replacing the cartridge — what should I check?

If leaking persists after installing the new 1222 cartridge, check the following: confirm the retaining clip is fully seated and securing the cartridge; ensure the cartridge is fully pushed into the valve body with no gap; inspect the cartridge O-rings for damage; and verify the cartridge is oriented correctly with the ears aligned with the valve slots. If leaking continues, the valve body itself may be damaged and may require professional inspection.

Does the 1222 cartridge come with a warranty?

Yes. The Moen 1222 replacement cartridge is backed by Moen's One-Year Limited Warranty against defects in materials and workmanship. Most complete Moen faucets are also covered by Moen's Lifetime Limited Warranty on the overall product, though cartridges as individual replacement parts carry the one-year warranty.
