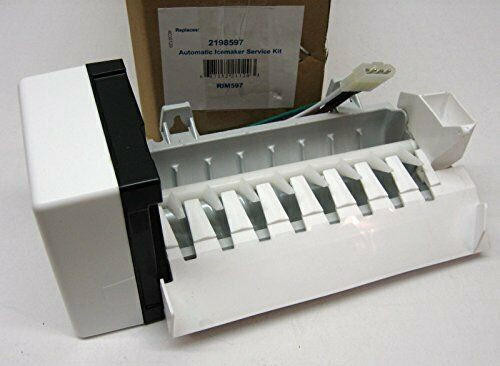

This icemaker is designed to fit various Whirlpool manufactured refrigerators including models from Kenmore and Kitchenaid. It fits side-by-side refrigerators with the ice bin in the door, delivering ice cubes directly for easy access.

Compatible Models

This icemaker is compatible with the following models:

• 2198597
• 2198598
• 106.626663
• AP3182733
• PS869316
• W10190960
• W10122502

Specifications

Attribute	Value
Part Number	IM597
Replaces	2198597, 2198598, 106.626663, AP3182733, PS869316, W10190960, W10122502
Manufacturer	Supco
Product Type	Refrigerator Replacement Parts
Connector Length	10.5 inches
Color	None

Signs You Need This Part

• Icemaker is not producing ice.
• Ice cubes are not ejecting properly.
• Water leaks around the icemaker.
• Icemaker is making unusual noises.

Installation

1. Unplug the appliance from the power source.
2. Remove the cover panel of the icemaker if applicable.
3. Disconnect the existing icemaker connections.
4. Attach the new icemaker using the 4-pin connection.
5. Restore power to the appliance and test the icemaker.

Frequently Asked Questions

Does the 2198597 fit my Kenmore model?

Yes, the 2198597 is designed for compatible Kenmore refrigerator models with ice bins in the door.

Is this the left or right side icemaker?

This icemaker is designed for side-by-side refrigerators and fits the specified ice bin configuration, so orientation is not an issue.

Does it include mounting hardware?

No, the icemaker does not include a wire bar or additional mounting hardware; it works with the existing emitter setup in the door/bin.
